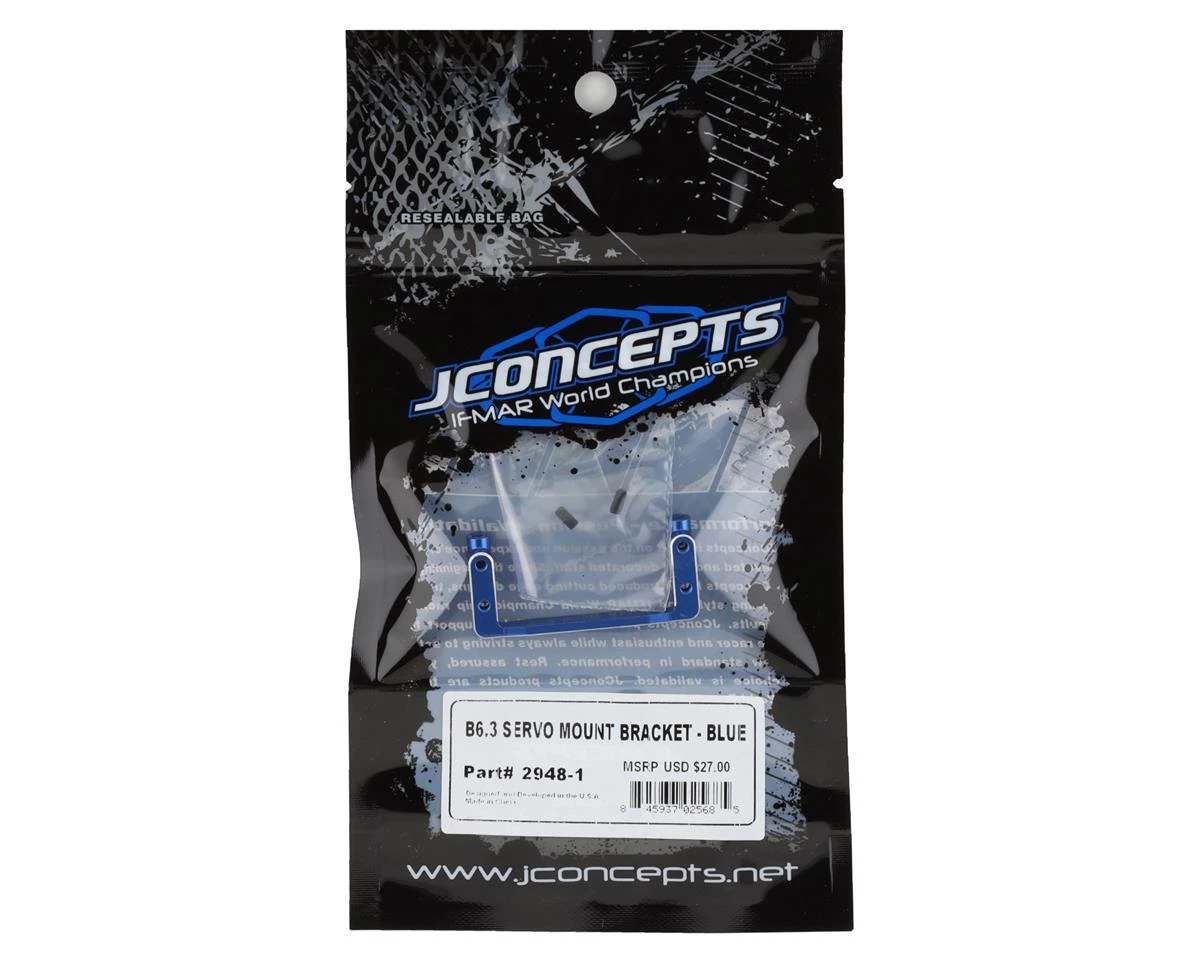

JConcepts B6.3 Servo Mount Brace (Blue)

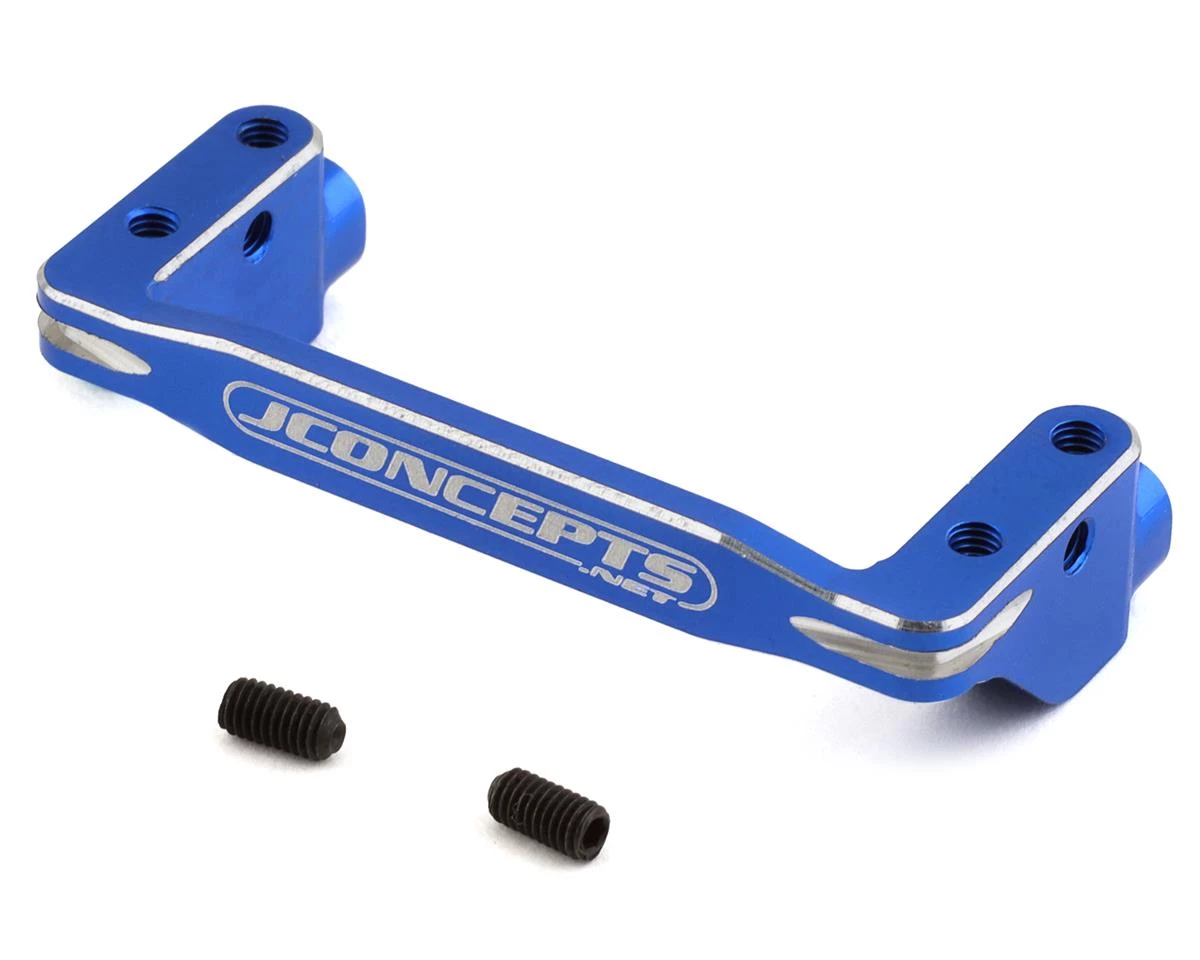

The JConcepts B6.3 Servo Mount Brace is an optional upgrade that features a simple and sleek design to provide improved performance and strength to your servo mount. The servo mount requires no modification for installation and adds support to the chassis servo mounting area, while the 2 screw mounting locations allow a direct mount to the chassis. The brace has locations on each side for included 3x6mm set screws to help align and maintain servo position during racing conditions, crashes, and hard hits. The set screws are intended to secure the servo case and provide additional support retaining the servo in the intended position to help maintain consistent steering trim.

Installation

To install, completely remove servo from vehicle and remove standard mounts. With the servo horn already in the correct position, align plastic shims or without as previously used on the servo. Install brace to each side and loosely fasten factory mounting screws with washers into the 4 locations and snug them. Now, center the servo between the brace and install the 3x6mm set screws on each side, use a light amount of thread locking compound (JCO8136) RM2 thread lock adhesive and snug them to touch off and keep the servo in place.

Completely clamp the 4 mounting screws on the front side to lock servo position. Remember to always use a light amount of thread locking compound when securing steel screws into aluminum. Reinstall the servo to vehicle and trim out and check EPA adjustments to complete assembly.

• JConcepts original design and function
• Machined aluminum, wrap-around concept
• Set screw-controlled centering feature
• Available in blue and black anodizing colors
• Aesthetic jewelry
