JConcepts Tamiya Clod Buster Regulator Chassis Conversion Kit

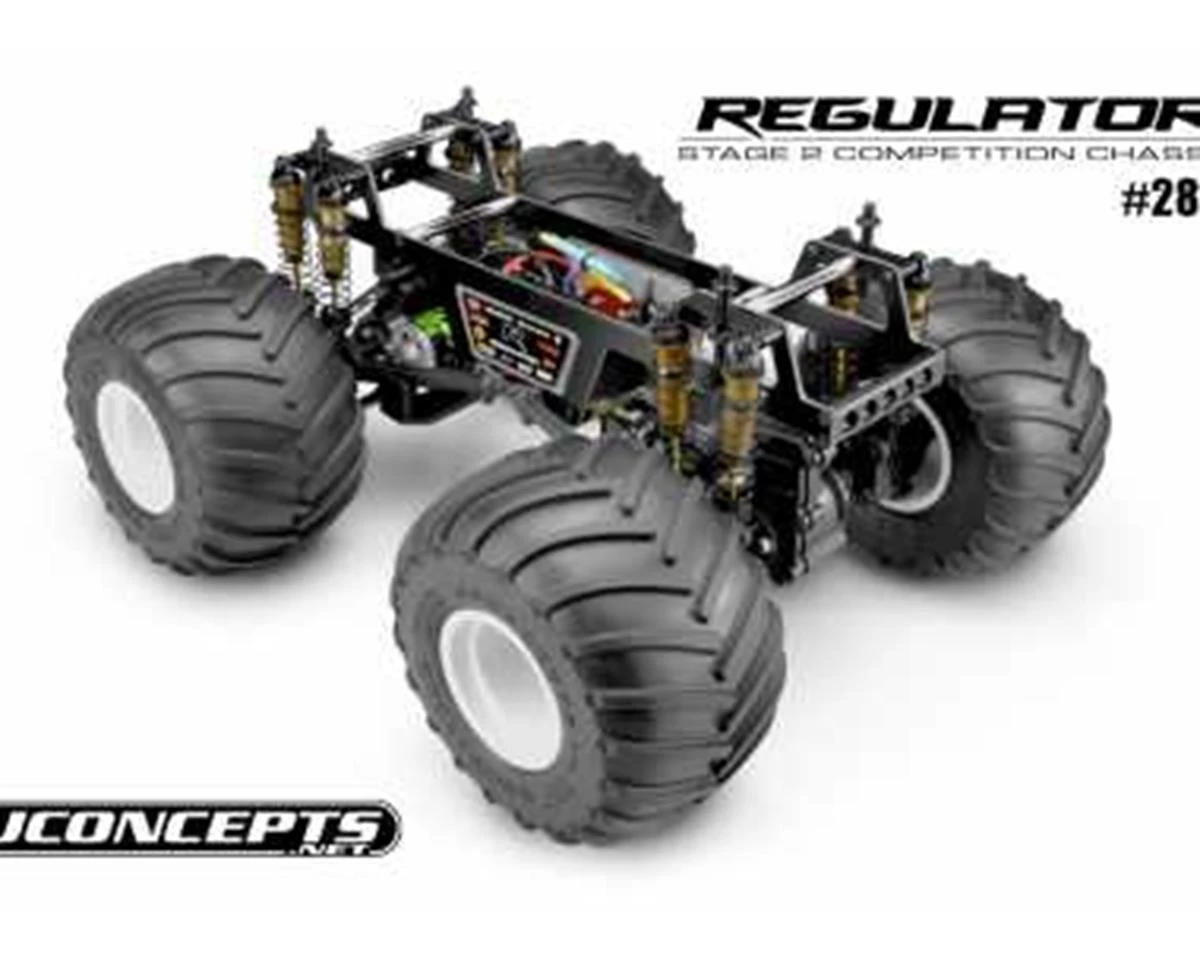

The JConcepts Tamiya Clod Buster Regulator Chassis Conversion Kit is an optional upgrade developed to improve weight balance, lower the center of mass with optimized engineering materials and pinpoint adjustability to fully compliment one of the longest running vehicles in the RC industry. The Regulator focuses on allowing other existing RC components to work alongside of the design such as readily available body designs, shocks, wheels, tires and behind axle servo conversion kits.

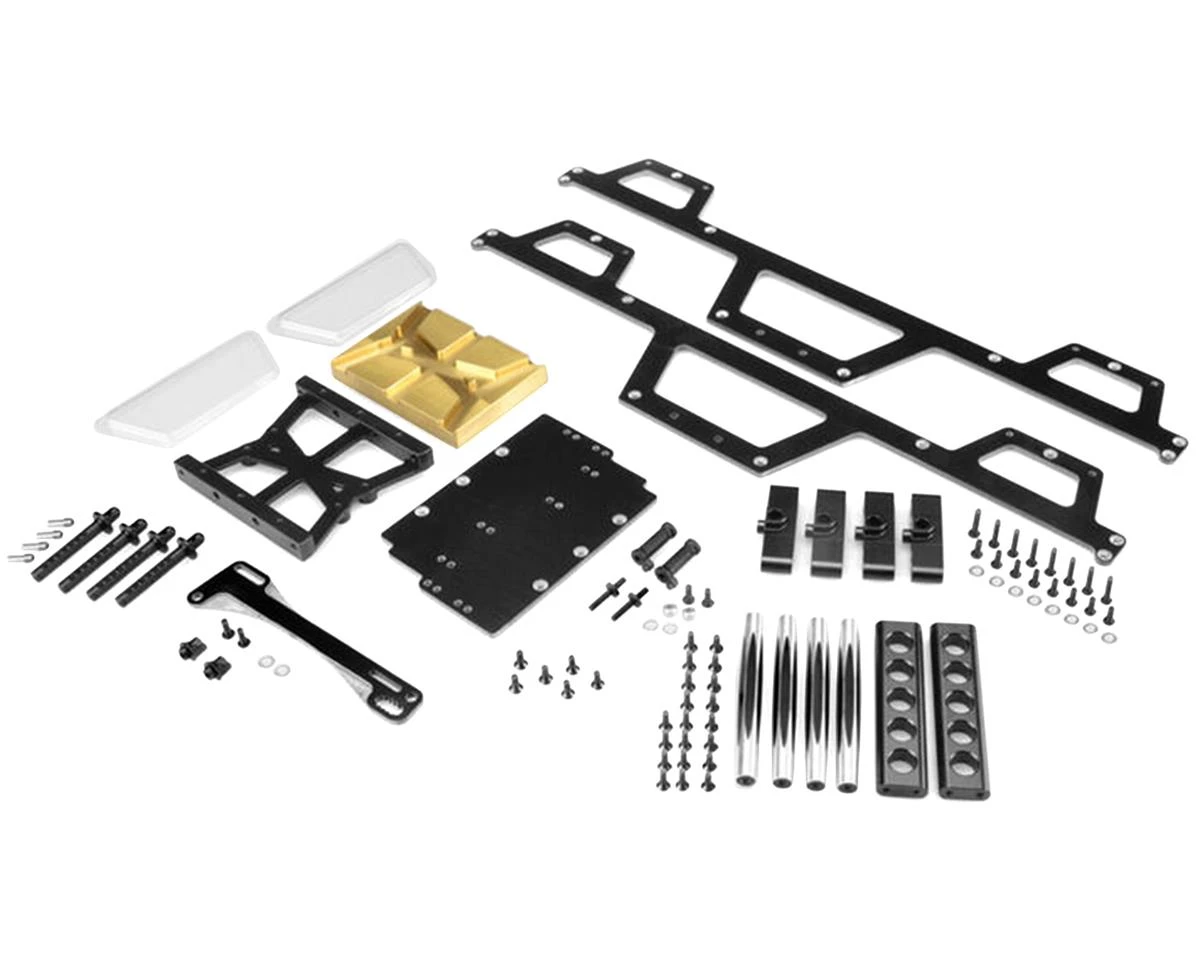

The key to the Regulator is the positioning of the battery and electronics in a top access layout and placed deep into the chassis for a low center of gravity. The fiberglass chassis and bottom plates hold the retro straight rail frame physique and at the base of the chassis, the heavy-duty aluminum cradle supports the suspension and ladder bars. In addition, a brass weight is included for racing in a sanctioned competition where a weight limit is used to even the playing field even further. The brass weight is mounted at an incredibly low position and locks into the cradle which aligns perfectly with the low center of gravity concept.

The light-weight aluminum shock and body post mounts are precision machined and mounted on each corner with 3mm hardware and setup to accept a variety of shocks on the market. Aluminum horizontal chassis members are positioned front and rear and have been lightened in a vintage fashion consistent with a Stage 2 monster truck. The chassis brace tubes have been tricked out to show a hexagonal shape and tubular shape to luster out the chassis assembly.

Machined and adjustable Delrin body posts are included along with pin screws to attach to the aluminum shock and body mount part providing a height adjustment. The battery mounting system contains a fiberglass battery strap for a shorty style battery with bump stops on each end to hold the battery positioning on the radio tray. Finishing off the panels of the chassis, polycarbonate pieces are included and can be trimmed to slide into the pockets of the chassis to give scale looks. Trim and position the included decal sheet on the panel to detail out the sides of the Regulator to fit whichever theme suits the build.

NOTE: To complete the build, it is necessary to have a Clod Buster or complete axle assemblies and electronics to go along with the Regulator conversion kit. It is advised and required to use a servo on axle conversion kit or preferably, the JConcepts JCO2823 servo mount kit for behind the axle steering. It is also necessary to have standard Clod Buster shocks or 100mm in length oil filled shocks.

Features:

• Precision machined aluminum
• Quality fiberglass steering rack
• Heavy-Duty aluminum cradle
• Brass optional weight for sanctioned competition
• Black anodized aluminum shock and body mounts
• Machined and vintage lightened chassis members
• Hybrid hex / tubular chassis braces with anodizing
• Delrin adjustable body mounts
• Fiberglass battery hold down assembly with bump stops
• Lightweight / durable design
• Aesthetic, race- ready jewelry

This product was added to our catalog on December 13, 2021
